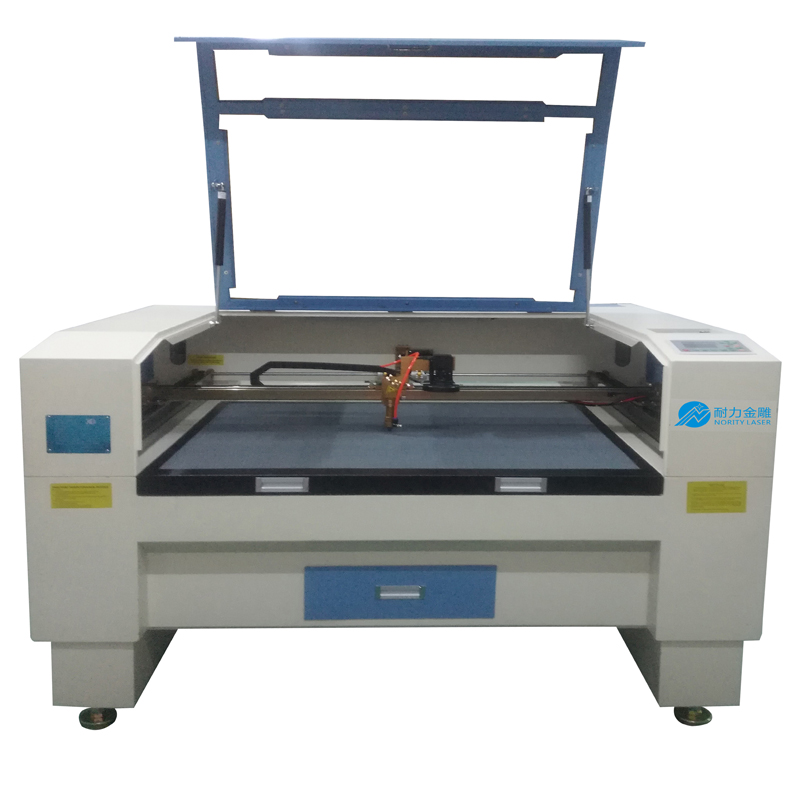

NL-1060CCD Brand Badge Laser Cutting Machine

Small Vision CCD Laser Cutting

Functional parameters

  • Model：NL-1060CCD
  • Laser type：CO2 LASER
  • Laser power(W)：80W-300W(Optional)
  • Working Area(mm)：900x600mm

Specifications

  • Cooling method：Water Cooling
  • Power demand：1PH+1 AC 220V 15A 50/60HZ 或 110V 60HZ(Optional)
  • Machine weight：About：N.W 260kg，G.W 320kg (KG)
  • Machine dimensions：1600*1200*1100mm (mm)







Message online customer service

Product descriptionTechnical ParametersTechnical documentsAncillary products


A machine specially designed for cutting marks, trademarks, school seals and other patterns


1. Applicable materials

This product is suitable for non-metallic materials such as cloth, leather, wool, plexiglass, rubber, PCB, wood products, etc.


2. Applicable industries

This type of machine is suitable for trademark weaving, clothing leather, cloth toys, computer embroidery cutting, template cutting, paper products and other industries.





3. The advantages and characteristics of the machine

1) Automatic camera positioning and cutting.

2) The material can be placed at any angle

3) With splicing function, it can be cut in a wide range up to 90x70cm

4) Precise cutting, no burnt edge, no yellow edge.

5) The system is lightweight, saves space and is easy to operate.

6) Improve the optical path system, the laser power is stable and the service life is long.

7) Three kinds of data interaction (U disk, PC, IP)

8) The software supports AI, PLT, BMP, JPG, DXF, DST formats, and is seamlessly compatible with CorelDRAW, CAD, PHOTOSHOP and other drawing software.


ModelNL-1060CCD
Laser typeCO2 laser
Cooling methodWater cooling
Laser power80W-300W(Optional)
Cutting speed0-800mm/s
Engraving speed0-1500mm/s
Repeat positioning accuracy±0.05mm
Processing range900x600mm
Power supply1PH+1 AC 220V 15A 50/60HZ 或 110V 60HZ(Optional)
Dimensions1600*1200*1100mm
Package dimensions1700*1300*1300mm
WeightAbout：N.W 260kg，G.W 320kg
Environmental requirementsTemp 15℃-35℃, Humidity30%-80%（No condensation）
