100W~275W CO2 Laser Marking Machine

Functional parameters

  • Model:NL-150RF NL-275RF
  • Laser type:CO2 laser
  • Laser power(W):100W~275W(Optional)
  • Working Area(mm):100x100~1200x1200(Optional)


  • Cooling method:Air-cooled/Water-cooled
  • Power demand:220V 50/60HZ
  • Machine weight:100~250 (KG)
  • Machine dimensions: (mm)




Message online customer service

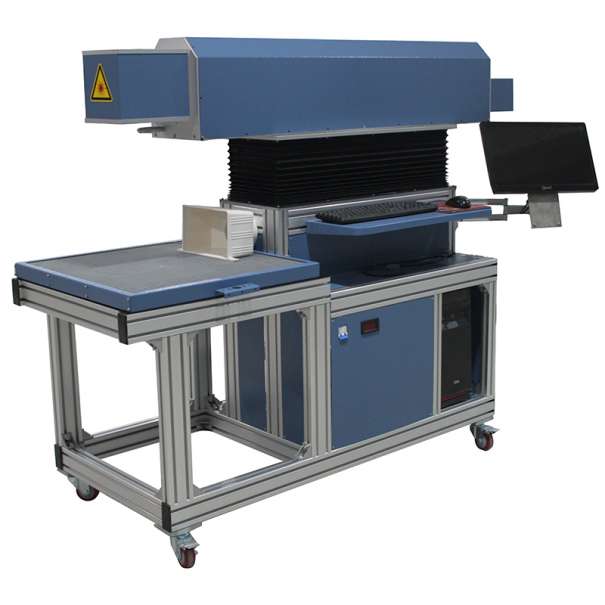

CO2 laser marking machine

High stability and anti-interference industrial computer intelligent control, high precision lifting platform,

To achieve the ideal marking effect, and truly realize the distinctive features of superior performance and low price;

This series of laser marking machines can cooperate with various production lines to carry out non-contact,

High-quality laser marking without pause, the marking effect is clear and exquisite, and can not be erased permanently;

The anti-counterfeiting effect is remarkable, effectively preventing the phenomenon of smuggling in the field of product circulation;

The laser has a long service life and low maintenance costs; the full Chinese operation interface,

Information input and modification are simple and easy, and are widely used in many fields such as clothing, denim, leather, craft gifts, etc.


Main functions of the software:

1). With text, pattern, QR code, barcode and other editing functions;

2). Automatically generate various serial numbers, production dates, barcodes, two-dimensional codes, and automatically skip numbers according to the rules;

3). The power is adjustable;

4). The marking speed is adjustable;

5). The function of previewing the working area with red light before marking;

6). After marking, the working time and marking quantity are automatically calculated;

7). Support the scanning and marking operation with the code scanning gun;

8) Support pedal operation;

9). Support TXT, Excel document import;

10). Receive drawings converted by other various design software such as Corldraw, CAD, AI, etc.; Common format files: PLT, DXF, JPG, etc.;

11) The software can be converted directly between Chinese and English.

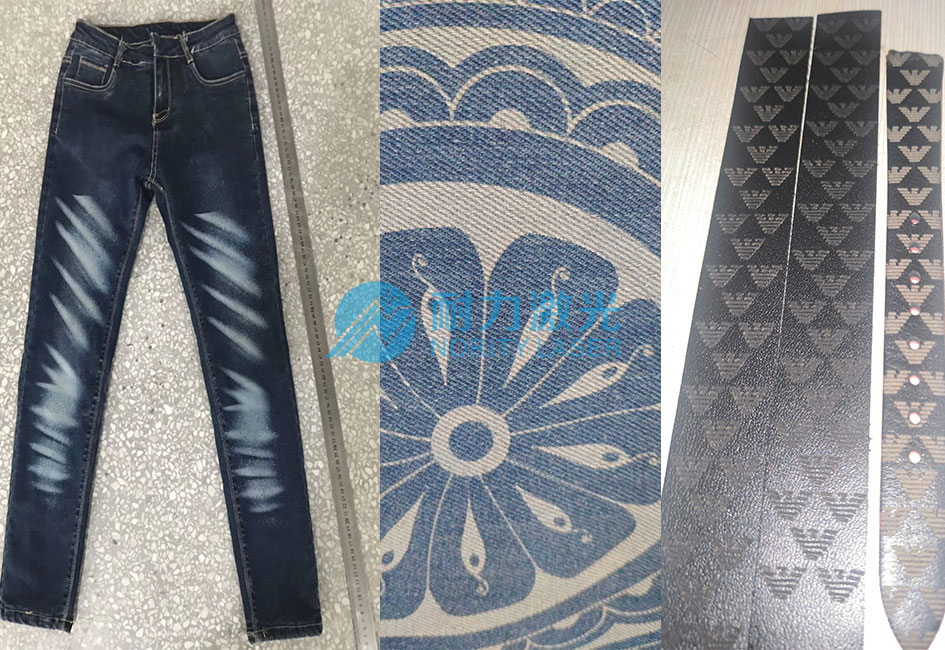

Applicable Materials

Leather, fabric , paper ,wood products ,crystal , ceramic ,marble ,and a variety of non-metallic composite materials.

Applicable Industry

This dinds of model apply to Embroidery ,trademarks ,with embroidered cloth ,clothing ,leather ,buttons ,glasses ,gifts and related process industries.

Laser TypeCO2 LASER
Cooling methodAir-cooled/Water-cooled
Scan inspire mirror3-8 3-8times(Optional)
Marking size 100mm*100mm~1200mm*1200mm(Optional)
Max laser power30W~275W
Laser wavelength 10.6um
Min.line width0.15mm
Marking speed≤7000mm/s
Repeat precision±0.01mm
Engraving depth ≤5mm
Min. character 0.40mm
Plus frequency ≤100KHZ
Weight Net weight: 100-250kg    Gross weight: 120-300kg
