NL series Double head laser cutting machine

Functional parameters

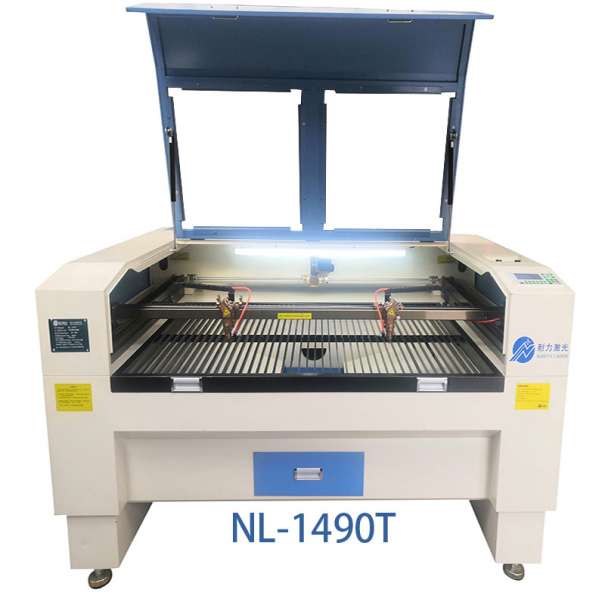

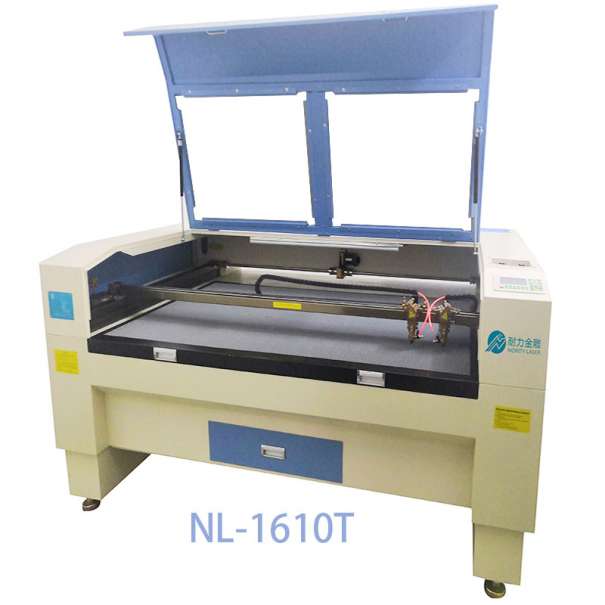

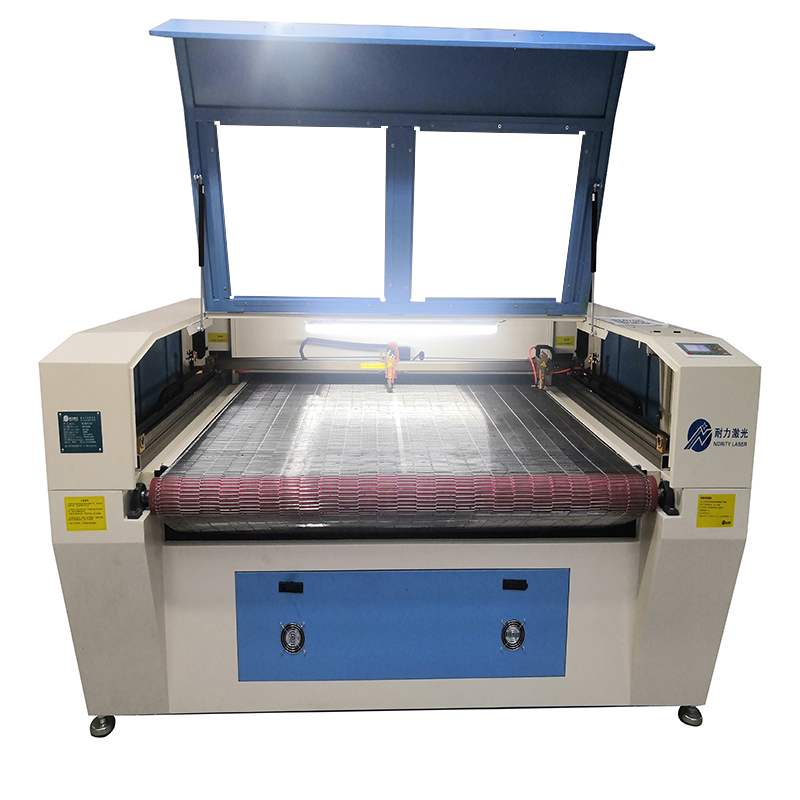

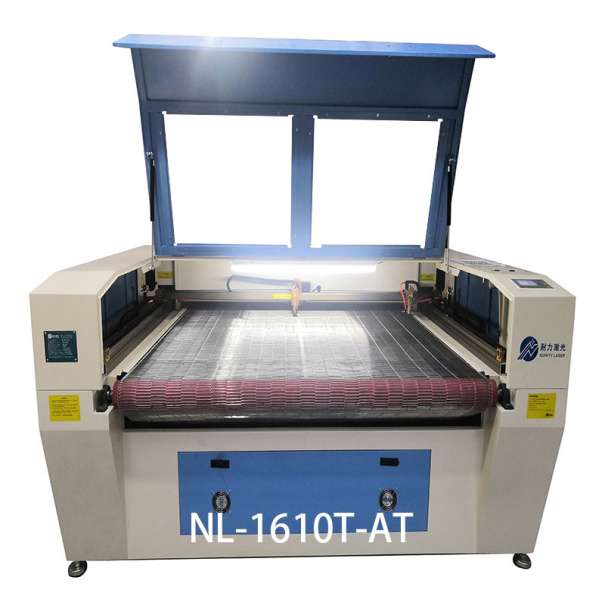

  • Model:NL-1490T / NL-1610T / NL-1610T-AT(automatic feeding)
  • Laser type:CO2 LASER
  • Laser power(W):80W-300W(Optional)
  • Working Area(mm):1400x900mm 1600x1000mm 1600x1000mm


  • Cooling method:Water cooling
  • Power demand:1PH+1 AC 220V 15A 50/60HZ 或 110V 60HZ(Optional)
  • Machine weight:About:N.W 160kg,G.W 320kg (KG)
  • Machine dimensions: (mm)




Message online customer service

CO2 laser cutting engraving machine

This series is specially for cutting non-metallic material; the moving parts adopt imported high precision straight balanced Guide way and high speed stepping subdivisive electromotor; inset-in computerization control system. DSP figure with high speed disposing technology, offline operation, humanized operating interface. With Max saving space 28M for processing files, and the laser power and engraving/cutting speed can be controlled at any discretion.  It is the best choice of the non-metallic laser cutting and laser processing industries.

Machine Advantage

1. High cutting precision, no burn, no yellow mark;

2. Easy/friendly operation system;

3. Perfect optical system;

4. U.S.A step motor & driving system with high precision synchronization system to make sure fast cutting speed and high precision;

5. Interactive three kinds of data( U disk ,PC ,internet);

6. software support multiple formats: AI, PLT, BMP, JPG, DXF, DST, seamless compatibility CorelDRAW, CAD,    PHOTOSHOP, and other graphic software, easy operation;

7. A LAN interface, two-way communication, to improve transmission speed and accuracy; allows a computer to control up to 254 laser equipment, greatly reduces the user cost of investment;

Applicable Materials

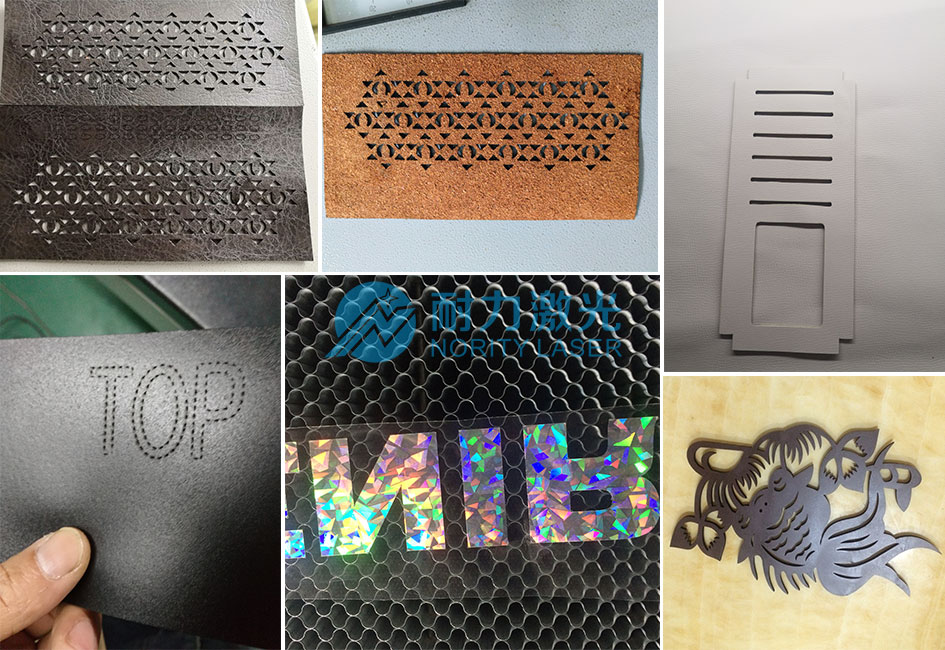

This kinds of model apply widely to fabric, leather, PU, wood, MDF, electronic parts, paper, acylic.......ect.


Applicable Industry

This kinds of model apply to cloth,leather, tabuectoy,electronics and electronic appliance,model,crafts gift, the advertising,package printing,paper products industry.

ModelNL-1490TNL-1610TNL-1610T-AT(Auto feeding)
Laser typeCO2 LASER
Cooling methodwater cooling
Laser power80W-300W(Optional)
Cutting speed0-800mm/s
Engraving speed0-1500mm/s
Repeat positioning accuracy±0.05mm
Processing range1400x900mm1600x1000mm1600x1000mm
Power supply1PH+1 AC 220V 15A 50/60HZ
Power consumption1500-300W
Environmental requirementsTemperature15℃-35℃, Humidity 30%-80%(No condensation)
